Widgets reference

swsd-mcp ships ten interactive UI bundles using the MCP Apps extension (SEP-1865). Each one is a single-file HTML resource served at ui://swsd/<widget-name>.html with content type text/html;profile=mcp-app. When a tool with an attached widget is called from an MCP Apps-capable host, the host renders the bundle alongside (or in place of) the structured-content text response. Hosts without MCP Apps support are unaffected: the same tools still return their normal text + structured output, and the _meta.ui.resourceUri advertisement is silently ignored.

Widget scripts and styles are bundled into the HTML; tool calls go through the host. HTML coming from SWSD (solution bodies, incident descriptions, comment bodies, catalog helptext) is sanitized client-side via DOMPurify before insertion. The host controls network access for content such as images and fonts. Theme variables and host fonts are applied when supplied by the host, so widgets follow its light/dark mode and font settings.

Widget catalog

Widget	Tool(s)	What it renders
incident-detail	swsd_get_incident	Single-incident card with description, due date, SLA-violation count, and resolution.
solution-detail	swsd_get_solution	Single-solution card with full sanitized HTML body, author, category, and updated date.
incident-list	swsd_list_incidents, swsd_list_my_incidents, swsd_my_queue	Sortable, filterable, scrollable table of incidents.
sla-risk	swsd_sla_risk	Risk-count chips + color-coded table with due countdowns.
comment-thread	swsd_list_incident_comments	Vertical comment thread with author chips, timestamps, and private badges.
audit-timeline	swsd_get_record_audits	Vertical audit-log timeline grouped by day with action chips and field diffs.
catalog-item-form	swsd_get_catalog_item	Renders catalog variables as a form; submits via swsd_create_service_request.
custom-fields	swsd_describe_custom_fields	Searchable explorer with scope/module filters, active-only toggle, and expandable values.
change-calendar	swsd_change_calendar	Local-time day sections for changes/releases, with shared-CI/group conflict badges.
ticket-stats	swsd_ticket_stats	Summary tiles, median resolution time, and state/priority/assignee/category breakdowns.

How widgets are loaded

1. Tool registration advertises _meta.ui.resourceUri; calls return content + structuredContent
2. Host fetches the resource via resources/read on resourceUri
3. Host opens the inlined HTML in a sandboxed iframe
4. Widget calls App.connect(): runs ui/initialize → ui/notifications/initialized
5. Host delivers the tool result via ui/notifications/tool-result
6. Widget's toolresult listener renders the data

Steps 4–6 run over JSON-RPC postMessage between the host and the iframe. The catalog form also uses this bridge to submit requests through the host.

Error handling

All ten widgets handle isError: true tool results. They render an error state showing the tool’s error message.

Per-widget detail

change-calendar

Light theme: change-calendar-light.png

Bound to swsd_change_calendar in Agent and Operations, or a custom selection, with resource URI ui://swsd/change-calendar.html. The header shows the selected window as a friendly date range (for example “Nov 10 – Nov 12 · times in EST”) and Changes, Releases and Conflicts totals (conflicting pairs). Day sections use each item’s start date in the viewer’s timezone. Rows show a fixed-width time column, a blue Change or purple Release pill, the linked name (wrapping to two lines) with a muted state · group · assignee line beneath it, and a fixed Conflict badge column so rows line up. Red left borders and Conflict badges identify overlapping work; the badge tooltip lists shared CIs and groups.

Times are shown in the viewer’s local timezone (via Intl), including the one-hour assumption when an end is missing; the tool’s structured output stays in UTC ISO timestamps. Times use the viewer’s locale format (for example “4:00 – 6:00 AM” in en-US). Multiday work appears once under its start day as “5:00 AM →” with “Nov 12, 5:00 AM” on a second line. Tooltips keep the full name, metadata and raw ISO times. At 440px and below the time moves to its own line. The layout sizes to its content and follows the host’s light/dark theme.

An empty state explains when no scheduled work matches. A partial-calendar notice appears when the scan reaches its limit; hidden/unscanned or filtered-out records are not covered by the conflict check. See calendar filters and scan accounting.

The screenshots on this page are rendered with synthetic example data (“Acme Corp”). The harness lives at screenshots/host-mock.html: run npm run build then serve the worktree over a local HTTP server to regenerate them. No real SWSD tenant data appears anywhere on this site.

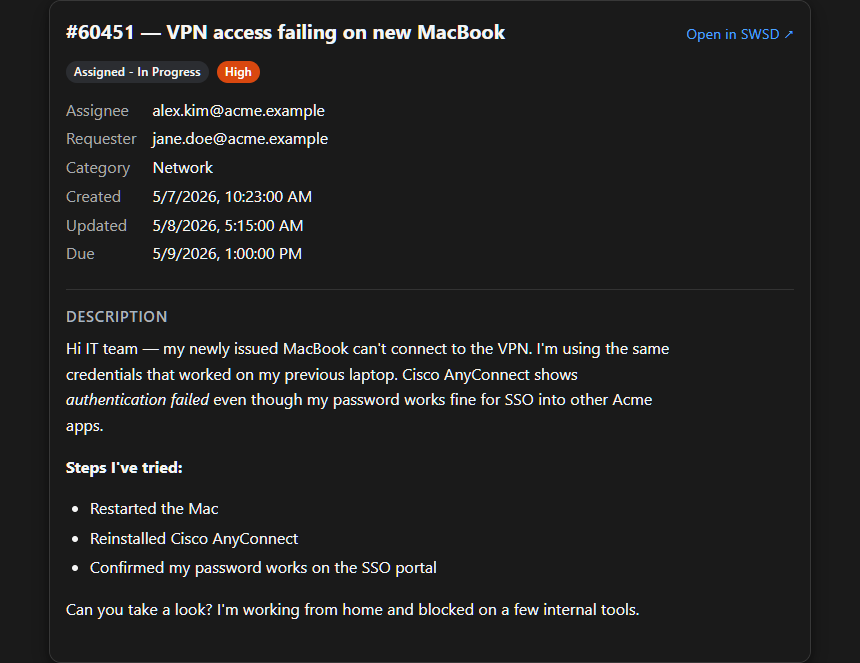

incident-detail

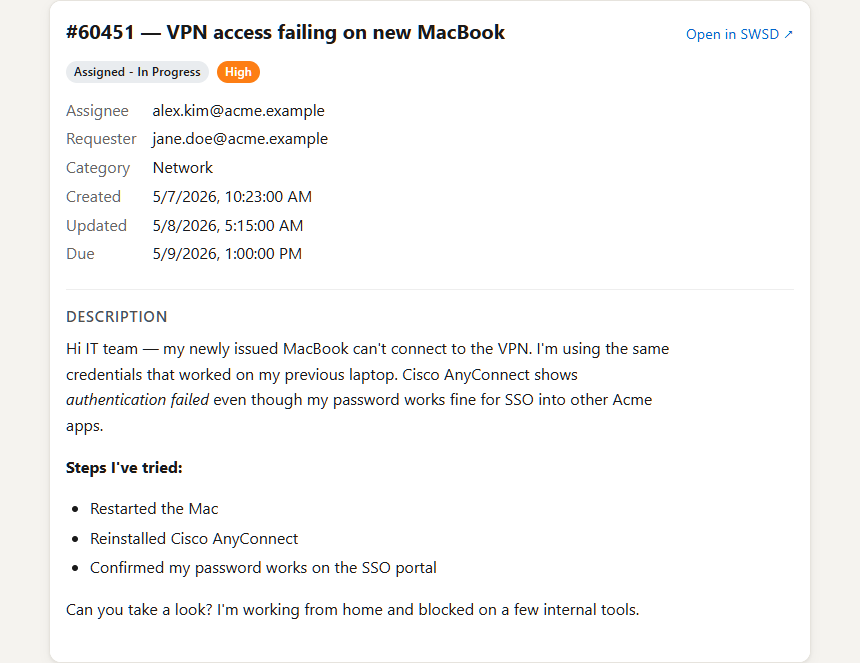

Light theme: incident-detail-light.png

Bound to swsd_get_incident. Card layout: name and incident number/id, state and priority badges, metadata grid (assignee, requester, category, created/updated dates, due date), an Overdue badge when due in the past, an SLA-violation count when present, sanitized description, and sanitized resolution when supplied.

Pass detail_level: "long" to populate description, SLA, and resolution from ?layout=long.

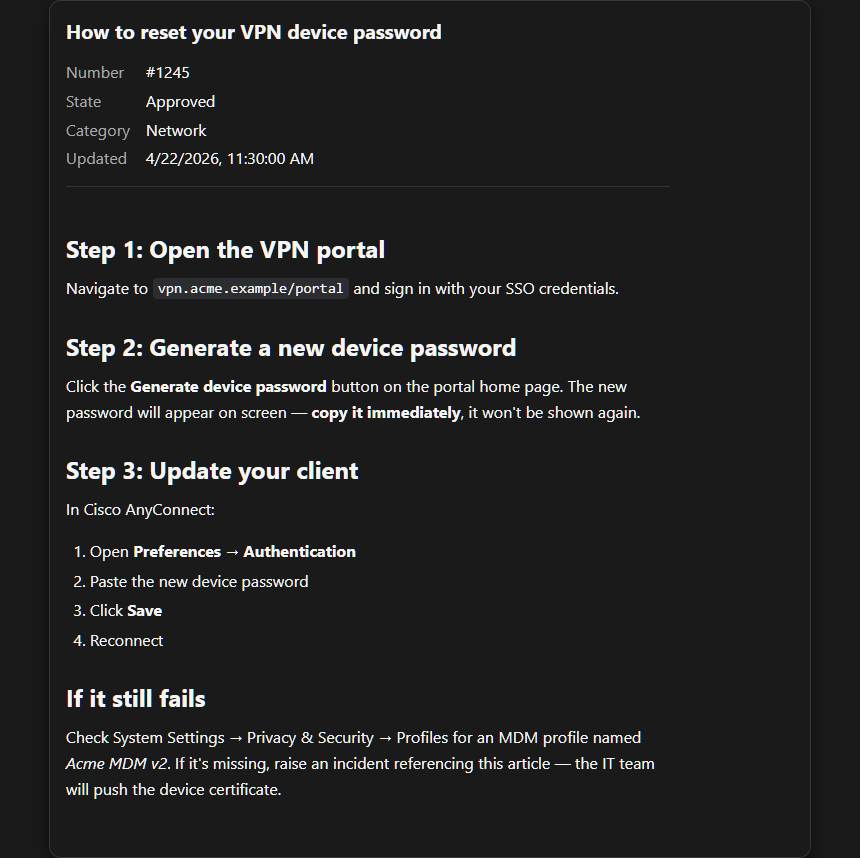

solution-detail

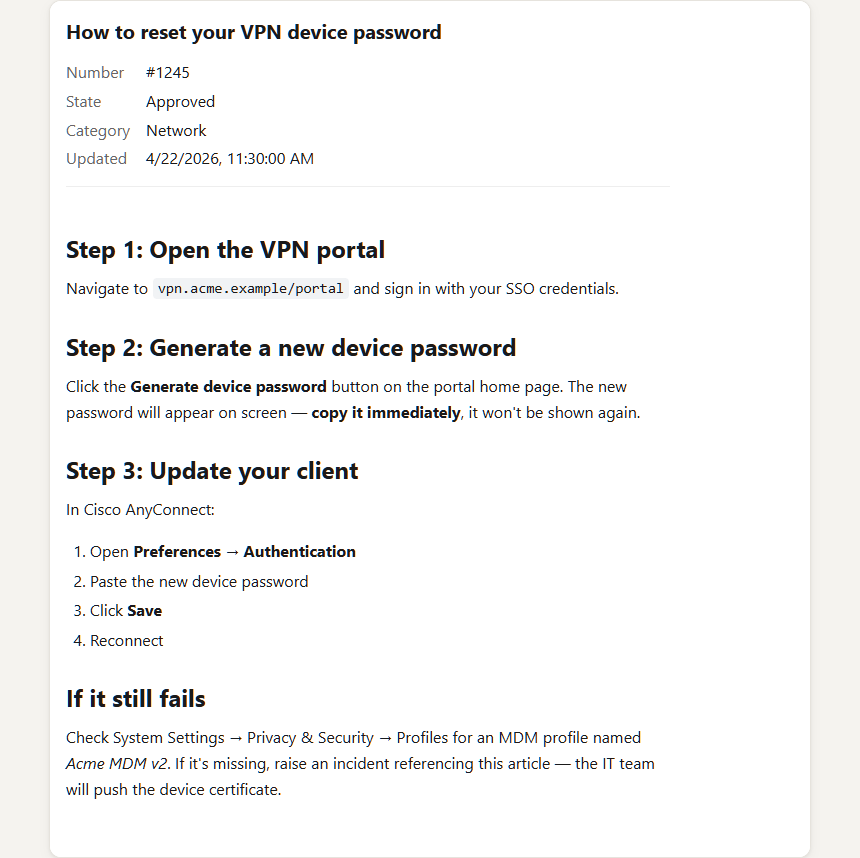

Light theme: solution-detail-light.png

Bound to swsd_get_solution. Card layout: article name, number, state, category, author email, updated date, and the full sanitized HTML body. Plain text or an excerpt is shown when no HTML body is supplied.

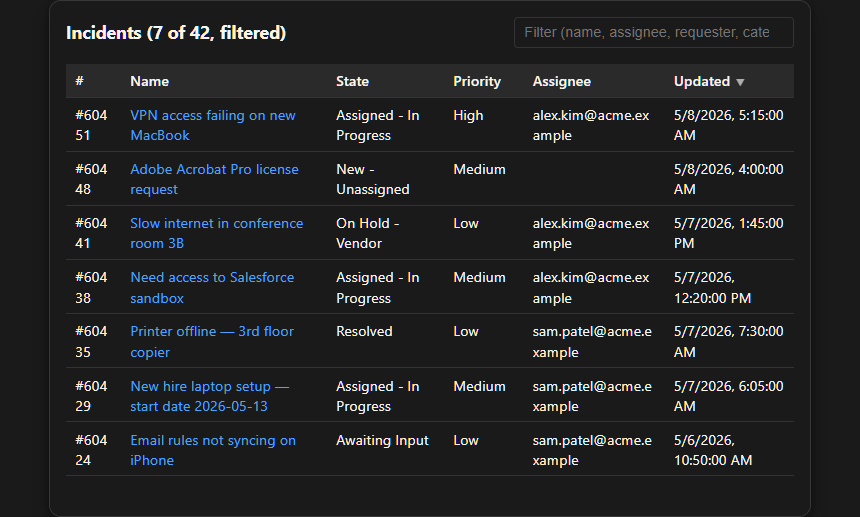

incident-list

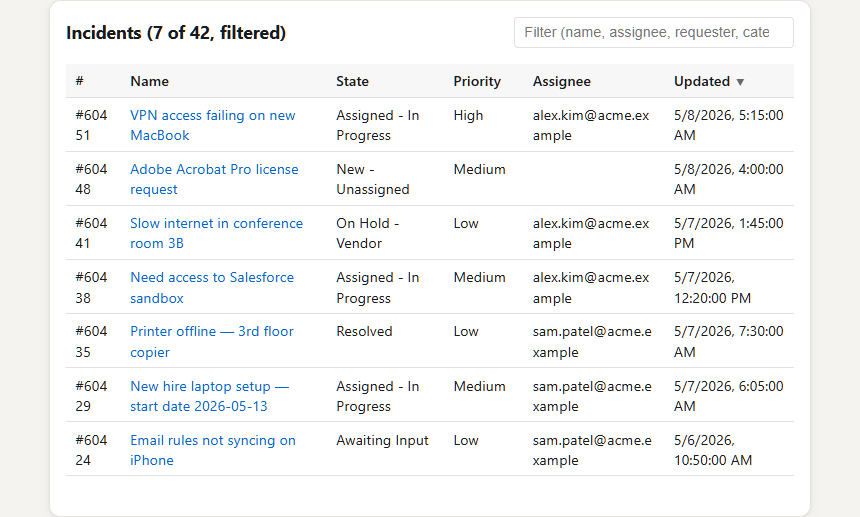

Light theme: incident-list-light.png

Bound to swsd_list_incidents, swsd_list_my_incidents, and swsd_my_queue (swsd_list_my_incidents auto-resolves the JWT user’s email as assignee_email). Table columns: incident number (falling back to id), name, state, priority, assignee, updated date. Sortable headers (click to toggle, ▲/▼ indicator + aria-sort on the active column). Wrapped in an overflow-x: auto container so the 6-column table scrolls instead of clipping at narrow viewports (<560px).

The title shows Incidents (N of M), where M is pagination.matched_total when present, otherwise pagination.total when pagination.total_scope is "filtered" or "tenant". When no reliable total exists (for example total_scope === "upstream" with client-side filters and unscanned pages, where matched_total is null), it shows Incidents (N shown).

sla-risk

Light theme: sla-risk-light.png

Bound to swsd_sla_risk. Header with color-coded risk-count chips (breached/critical/warning/ok/no due date) and a table of incidents sorted by risk priority. Each row shows the incident number/name (linked), a color-coded risk pill, human-readable due countdown (“Overdue by 3h 12m” / “Due in 45m”), priority, and assignee. Long names truncate with the full text available on hover. The layout sizes to its content and adapts to narrow hosts: below 640px the Priority and Assignee columns drop, and below 440px the number column folds into the name cell with the chips wrapping under the title. Risk colors: red for breached, orange for critical, amber for warning, green for ok, gray for no due date. Follows host light/dark theme via CSS custom properties and color-scheme.

ticket-stats

Light theme: ticket-stats-light.png

Bound to swsd_ticket_stats. Summary tiles show total scanned, open, created, resolved, breached and unassigned counts, followed by the median resolution time. A notice appears when the scan stops before all pages are read. Breakdown tables list state, priority, the top 10 assignees and the top 10 categories with a share bar. Follows host light/dark theme.

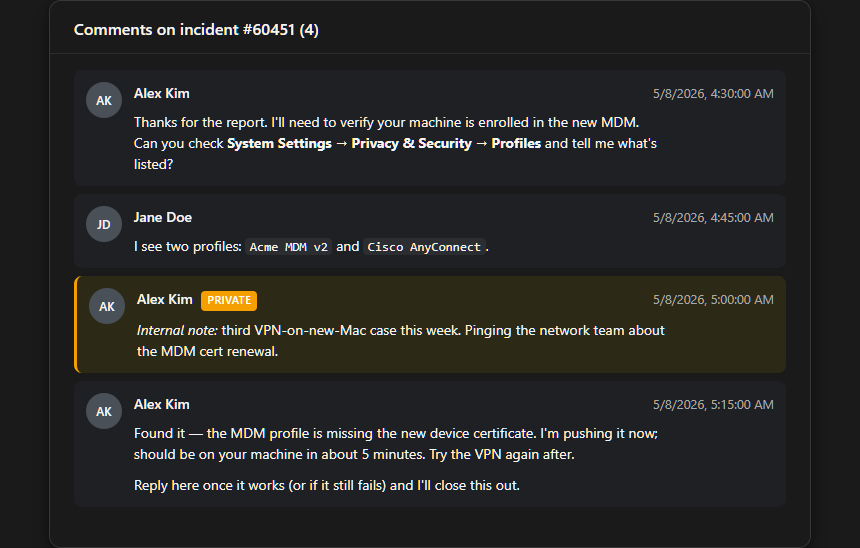

comment-thread

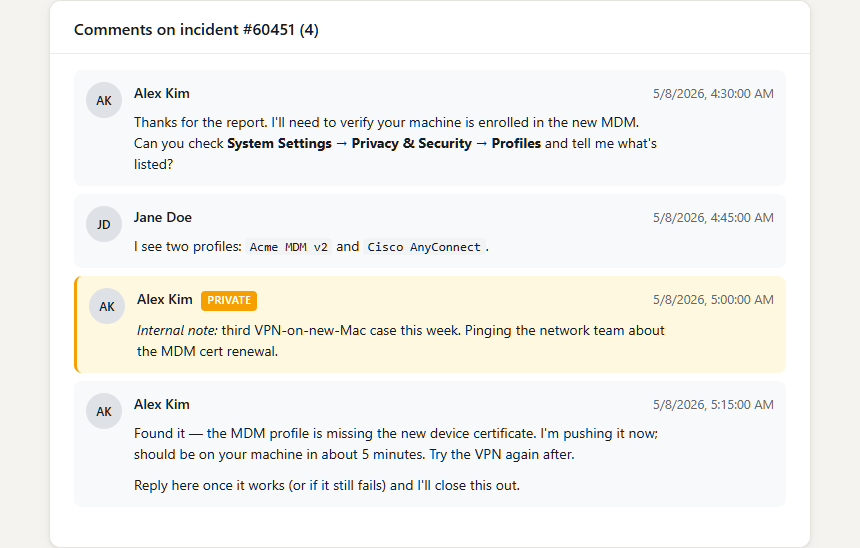

Light theme: comment-thread-light.png

Bound to swsd_list_incident_comments. Vertical list of comment cards. Each card has author initials and name, a timestamp, a Private badge for internal comments, and the sanitized HTML body. Internal comments are visually distinguished with a left-border accent.

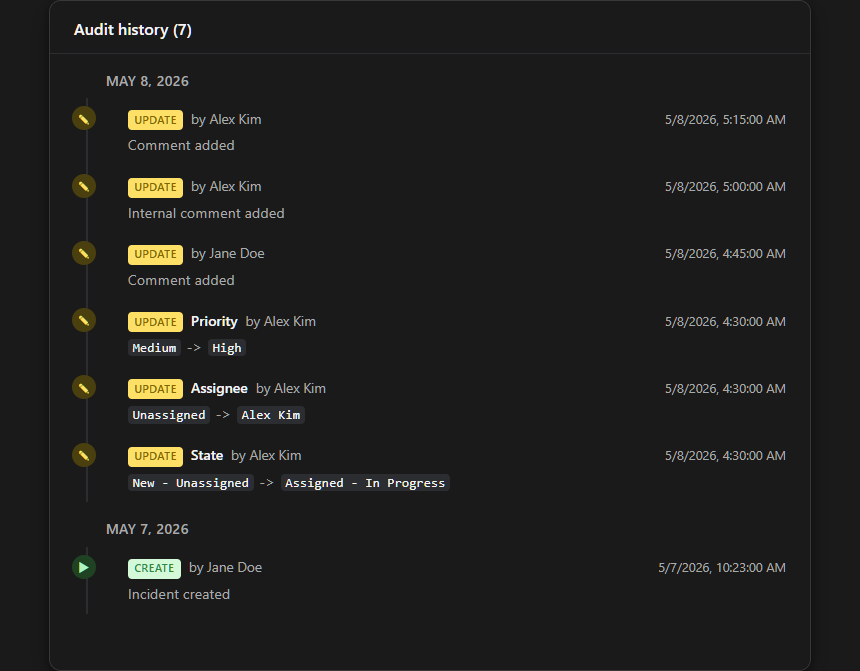

audit-timeline

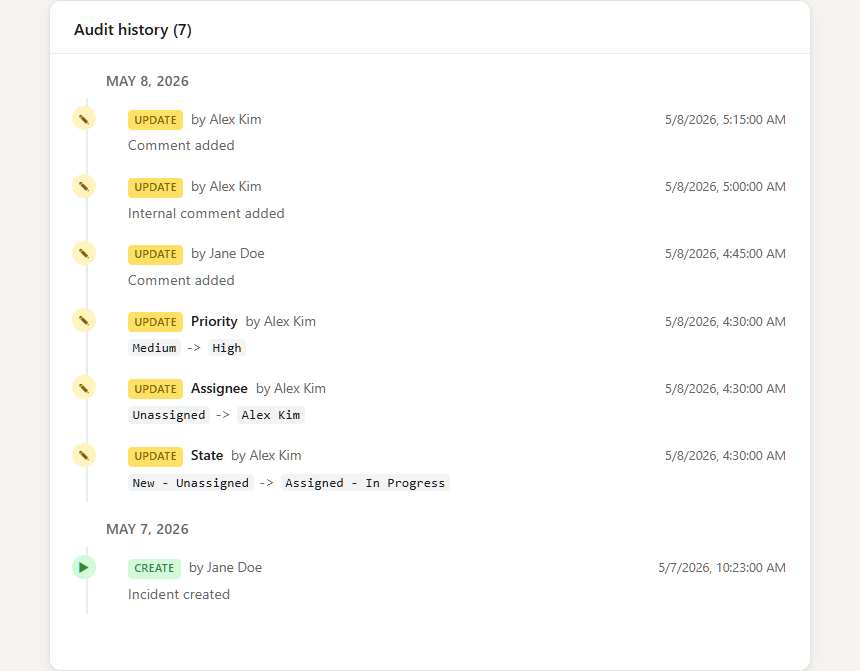

Light theme: audit-timeline-light.png

Bound to swsd_get_record_audits. Vertical timeline grouped by day. Each day section has a date header, then a list of audit cards: action chip (Update/Create/Delete), human-readable message (e.g. “State changed from New to Assigned”), the user who performed it, and the timestamp. Messages matching the field-change format are rendered as before → after pairs.

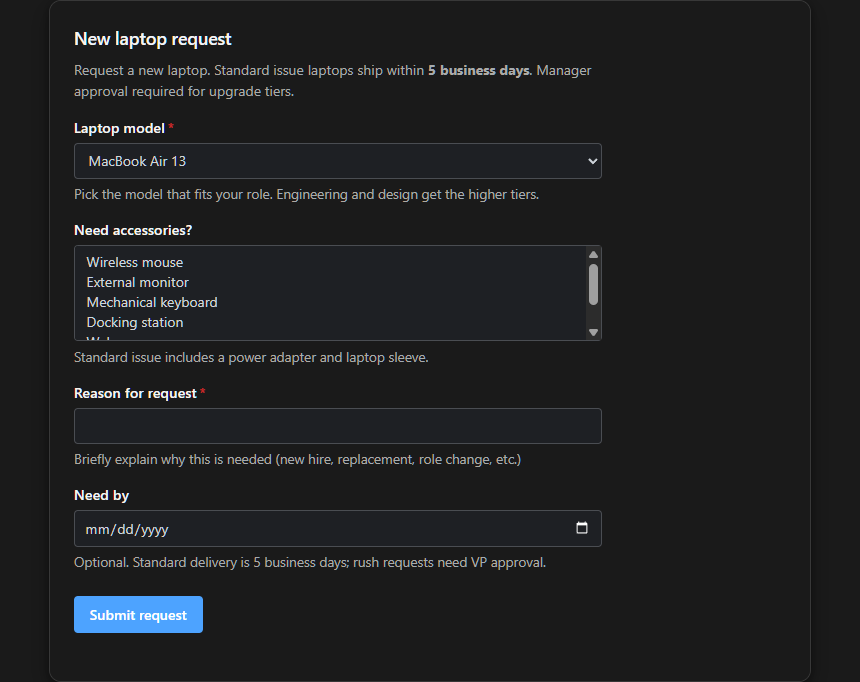

catalog-item-form

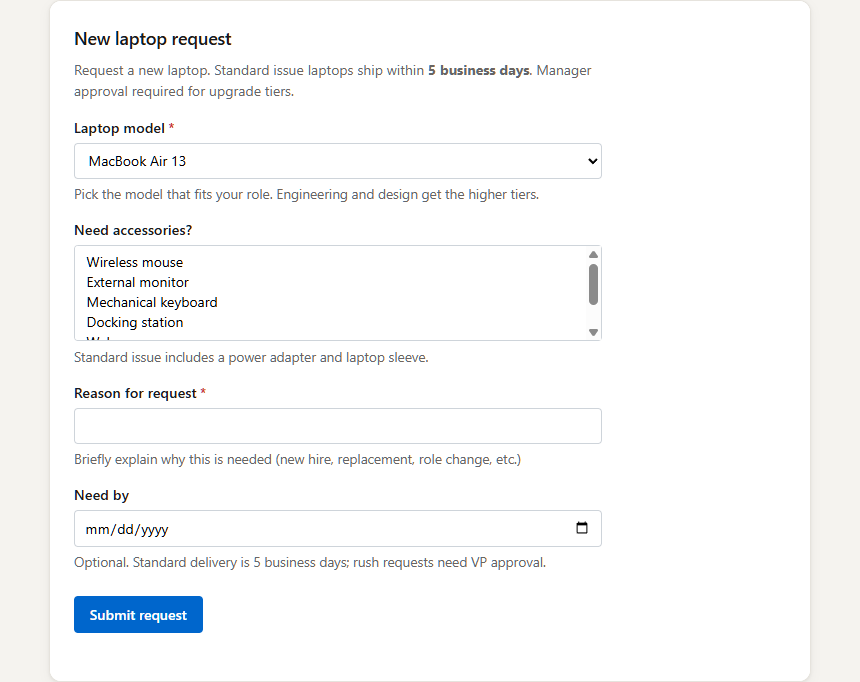

Light theme: catalog-item-form-light.png

Bound to swsd_get_catalog_item when swsd_create_service_request is also enabled. The form submits through the host. Renders the catalog item’s variables as a form: free_text becomes <input>, drop_down_menu becomes <select> with the catalog’s options as choices, multi_select becomes a multi-select, date becomes <input type="date">, user becomes an email input. Required variables are marked with an asterisk; helptext renders below the input.

The Submit button calls swsd_create_service_request through the host with form values in request_variables. The tool maps those values to SWSD’s request payload. A lookup-only profile returns text and structured data without the form.

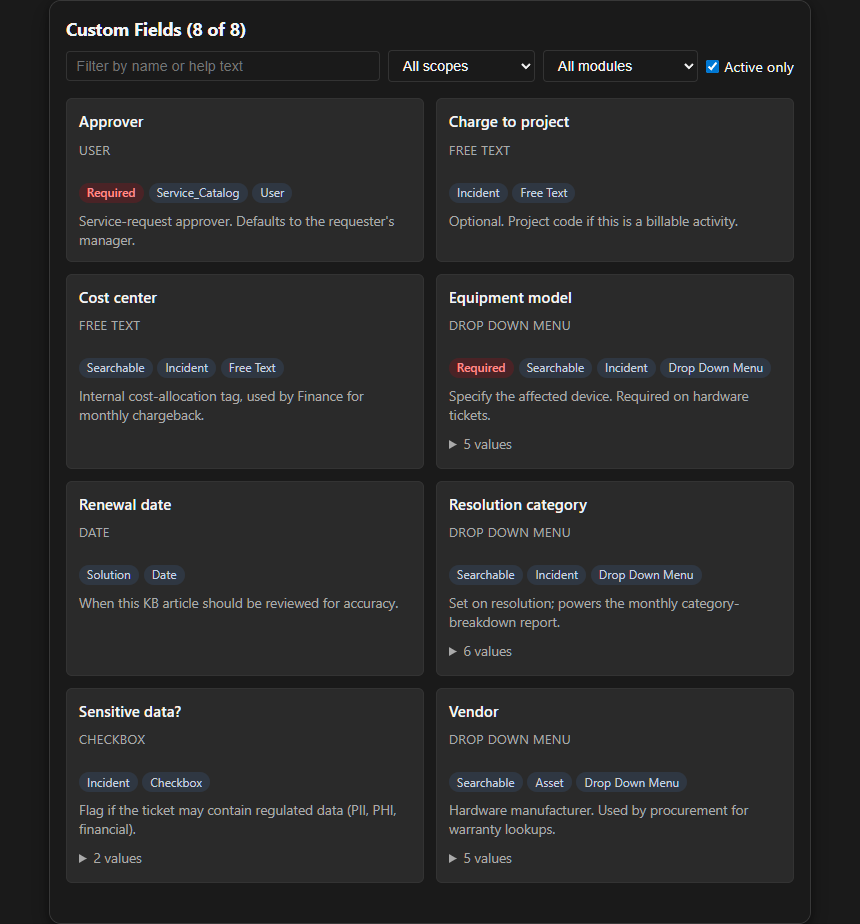

custom-fields

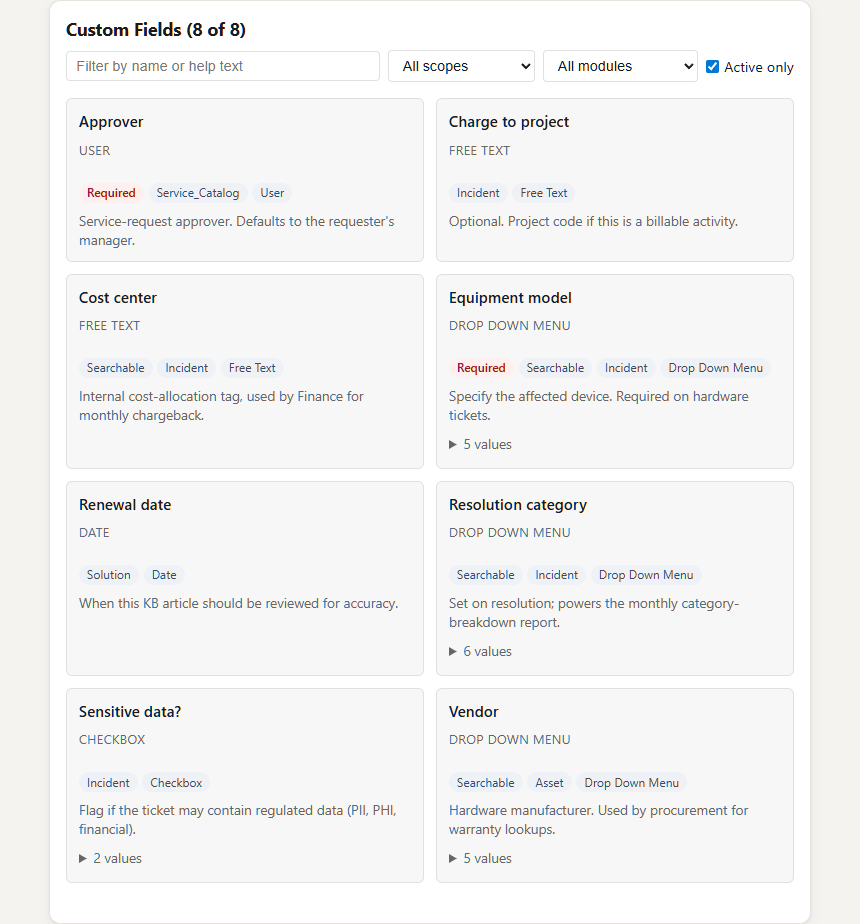

Light theme: custom-fields-light.png

Bound to swsd_describe_custom_fields. Searchable explorer with scope and module filters populated from the returned fields, plus an Active only toggle. Cards show each field’s name, type, help text, scope/module, required/inactive/searchable badges, and expandable allowed values. Useful for KB authors and agents who need to validate field names + dropdown values before passing them to swsd_create_* / swsd_update_* writes.

Host compatibility

For the canonical client matrix covering both stdio MCP support and widget rendering, see the Compatibility page.

See also

• Tools reference: every tool, including which ones ship a widget
• Architecture: how the server, client, and SWSD API fit together
• MCP Apps extension: the upstream protocol
